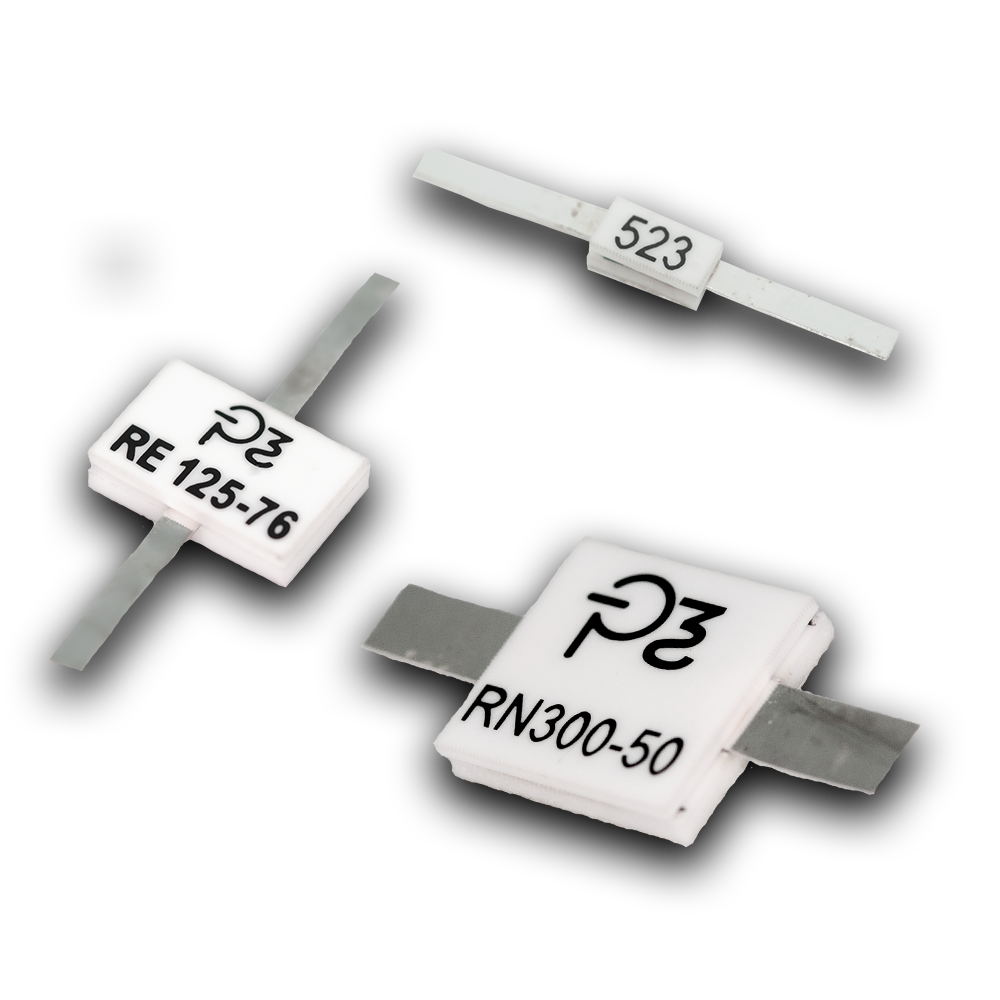

Flangeless Resistors

HYBR-FILM ™ Flangeless Power Resistors are high performance RF & Microwave power film resistive products designed for solder attachment directly to a plated heat-sink or a plated-thru hole printed circuit board configurations with the highest power and frequency ratings in the industry. Standard power ratings
from 30-1000 watts combined and with versatile industry standard configurations that allow for easy design-in solutions. Throughout the years of testing and field data has shown little to no degradation nor drift, making previous industry designs – obsolete.

Applications include Medical, Broadcast, Industrial, Commercial Wireless, Military and Space.
The HYBR-FILM ™ library of designs allows for modifications of standard designs to be made quickly and inexpensively to meet specific requirements with short delivery times. Please contact the factory for any special requirements or frequency ranges. Our wide selection of devices are designed and processed to insure the highest level of reliability and are manufactured in USA.

Standard Environmental Conditions:
Operating Temperature………………………….-55 to +150°C
Storage Temperature…………………………….-65 to +200°C
Humidity……………………………………………..95% relative humidity, non-condensing
Vibration……………………………………………..7 g’s rms, 50-5000 CPS per MIL-STD-810B, Method 514, Procedure 5
