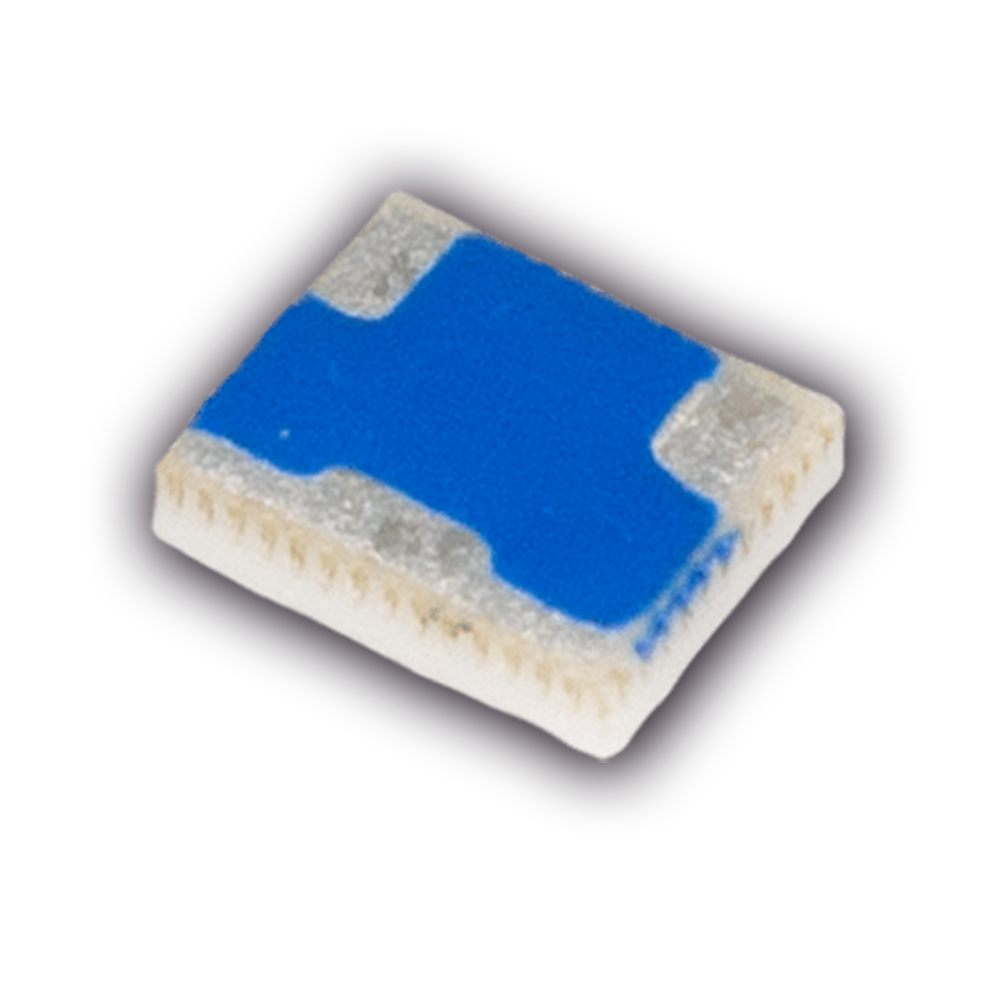

DC to 15 GHz SMT Attenuator Chip

HYBR-FILM™ AW-7560 Series attenuators are high-performance, fixed RF and microwave triple-wrap surface-mount attenuators designed for operation from DC to 15 GHz.

These devices are designed for SMT mounting techniques and can be attached with epoxy to a hard substrate or soldered directly onto a printed circuit board. They provide excellent frequency stability and long-term reliability.

With a 200-milliwatt continuous-wave power rating and a 2-watt pulse rating, the AW-7560 Series is suitable for Medical, Broadcast, Industrial, Commercial Wireless, Military, and Space applications.

Standard attenuation values from 0 to 10 dB are usually available from stock. Components are offered in tape and reel, waffle pack, or bulk packaging, with alternative I/O metallizations available for different mounting processes. Standard parts are RoHS compliant.

Features and Availability

Series: AW-7560 Triple-Wrap

Frequency Range: DC to 15 GHz

CW Power Rating: 200 mW

Pulse Power Rating: 2 Watts

Mounting: Epoxy or PCB solder attachment.

Compliance: Standard parts are RoHS compliant.

Series Selection Chart

Browse technical specifications and datasheets for our DC to 15 GHz SMT Attenuator Chip.

Part Number	Attenuation(dB)	Accuracy DC 4.0 GHz.	Accuracy 4.0-12.0 GHz.	Accuracy 12.0-15.0GHz.	VSWR DC-4.0 GHz.	VSWR 12.0-15.0 GHz.
AW-7560-00	0	-0.01	-0.2	-0.3	1.06 Max	1.25 Max.
AW-7560-01	1	0.1	±0.10	-.010 to -0.30	1.06 Max	1.25 Max.
AW-7560-02	2	0.1	±0.10	-.010 to -0.30	1.06 Max	1.25 Max.
AW-7560-03	3	0.1	±0.10	-.010 to -0.30	1.06 Max	1.25 Max.
AW-7560-04	4	0.2	±0.20	-0.20 to -0.50	1.06 Max	1.25 Max.
AW-7560-05	5	0.2	±0.20	-0.20 to -0.50	1.06 Max	1.25 Max.
AW-7560-06	6	0.2	±0.20	-0.20 to -0.50	1.06 Max	1.25 Max.
AW-7560-07	7	0.2	±0.20	-0.20 to -0.50	1.06 Max	1.25 Max.
AW-7560-08	8	0.2	±0.20	-0.20 to -0.50	1.06 Max	1.25 Max.
AW-7560-09	9	0.2	±0.20	-0.20 to -0.50	1.06 Max	1.25 Max.
AW-7560-10	10	0.2	±0.20	-0.20 to -0.50	1.06 Max	1.25 Max.
AW-7560-20	20	0.3	+0.30	-0.3 to -0.60	1.06 Max	1.25 Max.
