Conduction Cooled
Coaxial Terminations

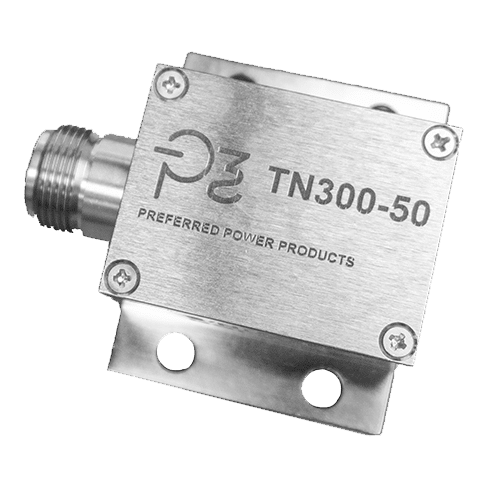

Coaxial Terminations deliver excellent performance for RF & Microwave power remote termination applications. These multi-purpose coaxial designs offers the highest power and widest band-width of any other known in the industry. With a power rating of 15 watts to over 1,000 watts reaching frequencies to 18.0 GHz. Combined with versatile industry standard configurations allow for easy new or existing design-in solutions. Applications include Medical, Broadcast, Industrial, Commercial Wireless, RADAR, Military and Space. The Ᵽᶔ library of designs allows for modifications of standard designs to be made quickly and inexpensively to meet specific requirements with short delivery times. Please contact the factory for any special requirements or frequency ranges.
Series Selection Chart
Part Number | Frequency (GHz) | Avg. Power (Watts) | Pulse Power (Watts) | VSWR (Max.) | Connector | Unit Size (Inches) | Internal Chip Material | Datasheet |
|---|---|---|---|---|---|---|---|---|
| TDSF25-50 | DC - 18.0 | 25 | Not to exceed avg. power | 1.35 @ 18 GHz. | SMA Female | .875 x .500 x .688 | CVD Diamond |
|
| TDSM25-50 | DC-18.0 | 25 | Not to exceed avg. power | 1.35 @ 18 GHz. | SMA Male | .875 x .500 x .688 | CVD Diamond |
|
| TDSF50-50 | DC - 18.0 | 50 | Not to exceed avg. power | 1.8 @ 18 GHz. | SMA Female | 1.00 x .480 x .500 | CVD Diamond |
|
| TDSM50-50 | DC - 18.0 | 50 | Not to exceed avg. power | 1.8 @ 18 GHz. | SMA Male | 1.00 x .480 x .500 | CVD Diamond |
|
| TDNF50-50 | DC - 18.0 | 50 | Not to exceed avg. power | 1.8 @ 18 GHz. | Type N Female | 1.00 x .480 x .500 | CVD Diamond |
|
TDSF-50-50-1 | DC - 18.00 | 50 | Not to exceed avg. power | 1.5 @ 18 GHz | SMA Female | 1.807 x .980 x .700 | Multi-Chip Config. |
|
| TSF50-50-1 | DC - 6.0 | 50 | Not to exceed avg. power | 1.35 | SMA Female | 1.375 x .960 x ,560 | BeO |
|
| TSM50-50 | DC - 6.0 | 50 | Not to exceed avg. power | 1.35 | SMA Male | 1.375 x .960 x ,560 | BeO |
|
| TNF50-50 | DC - 6.0 | 50 | Not to exceed avg. power | 1.35 | Type N Female | 1.375 x .960 x ,560 | BeO |
|
| TSF100-50 | DC - 6.0 | 100 | Not to exceed avg. power | 1.25 | SMA Female | 1.375 x .960 x ,560 | BeO |
|
| TSM100-50 | DC - 6.0 | 100 | Not to exceed avg. power | 1.25 | SMA Male | 1.375 x .960 x ,560 | BeO |
|
TNF100-50 | DC - 6.0 | 100 | Not to exceed avg. power | 1.25 | Type N Female | 1.375 x .960 x ,560 | BeO |
|
| TSF150-50 | DC - 6.0 | 150 | Not to exceed avg. power | 1.25 | SMA Female | 2.00 x 1.625 x .560 | BeO |
|
| TSM150-50 | DC - 6.0 | 150 | Not to exceed avg. power | 1.25 | SMA Male | 2.00 x 1.625 x .560 | BeO |
|
| TNF150-50 | DC - 6.0 | 150 | Not to exceed avg. power | 1.25 | Type N Female | 2.00 x 1.625 x .560 | BeO |
|
| TSF250-50 | DC - 6.0 | 250 | Not to exceed avg. power | 1.30 | SMA Female | 2.00 x 1.625 x 1.06 | BeO |
|
| TSM250-50 | DC - 6.0 | 250 | Not to exceed avg. power | 1.30 | SMA Male | 2.00 x 1.625 x 1.06 | BeO |
|
| TNF250-50 | DC - 6.0 | 250 | Not to exceed avg. power | 1.30 | Type N Female | 2.00 x 1.625 x 1.06 | BeO |
|
| TSF300-50 | DC - 3.0 | 300 | Not to exceed avg. power | 1.30 | SMA Female | 2.00 x 1.625 x 1.06 | BeO |
|
| TSM300-50 | DC - 3.0 | 300 | Not to exceed avg. power | 1.30 | SMA Male | 2.00 x 1.625 x 1.06 | BeO |
|
| TNF300-50 | DC - 3.0 | 300 | Not to exceed avg. power | 1.30 | Type N Female | 2.00 x 1.625 x 1.06 | BeO |
|
| TNF1R5K-50 | DC - 1.0 | 1,000 | Not to exceed avg. power | 1.08 | Type N Female | 1.900 x 1.900 x 1.03 | BeO |
|
| TNM1R5K-50 | DC - 1.0 | 1,000 | Not to exceed avg. power | 1.08 | Type N Male | 1.900 x 1.900 x 1.03 | BeO |
|
